VFD Control Panel: Complete Guide for Industrial Motor Control & Energy Efficiency
Introduction
Energy efficiency, accurate motor control, and system reliability are basics in todays industrial environment. A vfd control panel is thus a decisive instrument that holds a critical position in the modernization of automation systems. Nowadays, industrial sectors turning from manufacturing plants to water treatment facilities use VFD panels as a mean to control motor speed, lessen power consumption, and enhance operational life.
Techno Matrix is placing its bets on innovation with our state, of, the, art VFD solutions. Our efforts result in a product line that thrives on meeting real industrial challenges. Through this blog, you can understand what a VFD control panel is, how it functions, its advantages, usages, and the way to pick the right one for your industry.

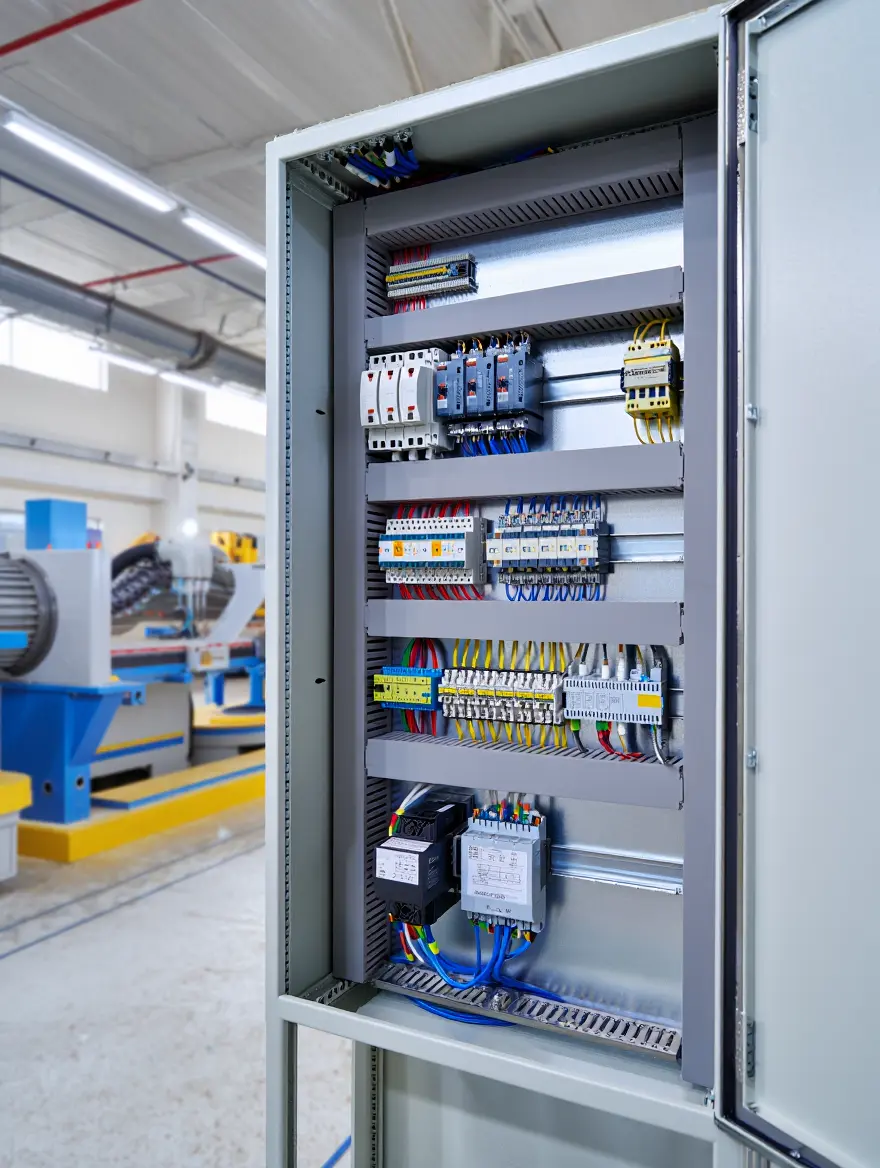

What Is a VFD Control Panel?

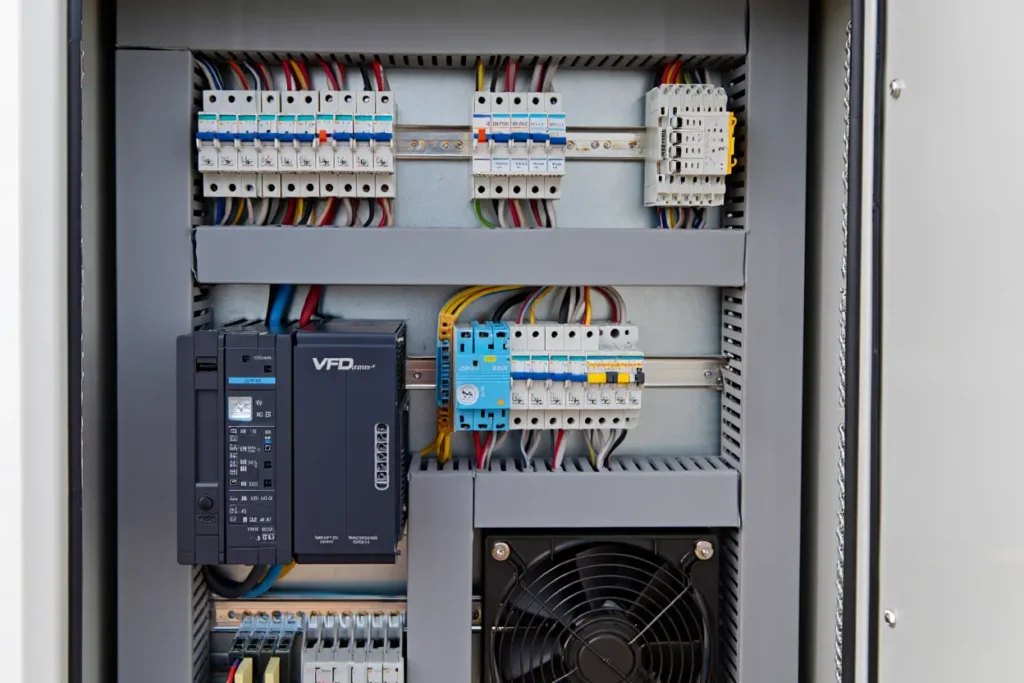

A VFD control panel is an electrical control system that comprises a Variable Frequency Drive (VFD) together with other protective and control elements. The primary function of the VFD panel is to control the speed and torque of an electric motor by adjusting the frequency and voltage of the input.
In particular, the VFD panel provides a means of operating a motor at less than full speed when full speed is not required. The benefits coming from this are much better process control, energy savings, and less mechanical wear.
How Does a VFD Control Panel Work?
A VFD control panel changes fixed, frequency AC power into variable, frequency output. It makes possible exact motor speed adjustment from process demand. Main Working Stages:,
AC power input is transformed to DC,
DC power is filtered and stabilized,
DC is changed to variable, frequency AC,
Motor speed changes according to load requirement
Techno Matrix takes care of correct component selection and heat dissipation thus the panel is capable of performing without any failure even in tough industrial environments.
Benefits of Using a VFD Control Panel
| Benefit | Industrial Impact |
|---|---|
| Energy savings | Reduces electricity cost by up to 50% |
| Precise motor control | Improves process accuracy |
| Reduced mechanical stress | Extends motor & equipment life |
| Lower maintenance | Fewer breakdowns |
| Soft start & stop | Prevents voltage and mechanical shocks |
A well-designed vfd control panel from Techno Matrix balances performance with long-term cost savings.

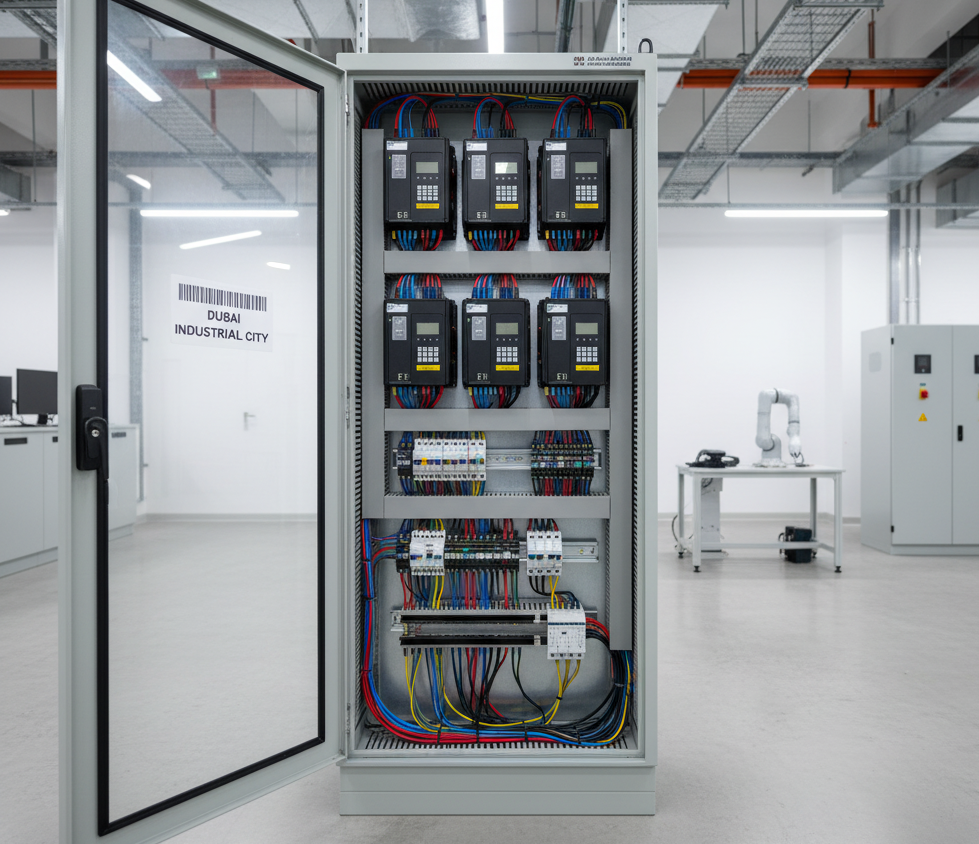

Applications of VFD Control Panels
A VFD control panel is basically the go, to device in the following industries:
Water & wastewater treatment plants
HVAC systems (fans & chillers)
Manufacturing conveyors
Pumps & compressors
Oil & gas facilities
Textile & packaging industries
Techno Matrix does not just sell a standard product. They tweak and tailor
How to Choose the Right VFD Control Panel
Choosing a suitable vfd control panel requires you to take into account the following factors:
Motor rating & load typeOperating environment (dust, heat, moisture)Required communication protocolsIntegration with PLC or SCADASafety and protection standards Pro Tip
It is a wise decision to keep a capacity for future expansion when selecting a VFD panel. Techno Matrix manufactures panels that facilitate quick upgrades without the need for an entire system replacement.
Why Choose Techno Matrix for VFD Control Panels?
Techno Matrix delivers:
Custom-built VFD control panels
Industrial-grade components
Compliance with international standards
Testing before dispatch
Technical support & commissioning assistance
Our focus is not just supplying panels, but delivering reliable automation solutions.
FAQs
Is a vfd control panel suitable for all motors?
Most induction motors are compatible, but proper sizing and configuration are essential.
Can a vfd control panel reduce energy bills?
Yes, especially in variable load applications like pumps and fans.
Conclusion
A vfd control panel is an intelligent choice of equipment for industries that are seeking to improve energy efficiency, gain more control, and have stable operations in the long, term. It yields considerably higher operational performance when it is designed properly, has quality parts, and expert engineering. If you are in need of a reliable and tailor, made solution, Techno Matrix is the company you can count on for industrial VFD control panels.
